INTRODUCTION
The computer experiments described below are designed to explore the properties of excitable membranes and their ability to generate action potentials. These experiments are based upon the squid giant axon, however, the principles that you learn here can be directly applied to action potentials in the mammalian nervous system. The squid giant axon was the biological preparation where all the original experimental information was obtained by Hodgkin and Huxley. These investigators developed a set of differential equations that reproduces the experimental situation accurately. The equations are based on physical principles and they can be solved by digital computers allowing the operator to change parameters and conditions to study the effects on the electrical response of the axon.
While performing these computer experiments, you will be learning how ionic conductances, currents, and membrane voltage are related and this knowledge will provide a strong foundation for understanding heart and synaptic function as well. In each exercise there is a basic experimental setup which gets you going, then you are asked several specific questions. You then perform "experiments" to answer these questions. Be sure to keep track of what you do experimentally, since the results from earlier experiments may help you later in the more complicated experiments.
Current Clamp vs. Voltage Clamp
The axon properties can be studied under two different kinds of stimuli: Voltage clamp or current clamp. In voltage clamp mode, the experimenter controls the voltage and measures the current and it is the most effective way to describe the properties of voltage dependent channels. Under voltage clamp the membrane potential is constant, therefore there is no capacitive current (except during the instant when the voltage is stepped from one voltage to another)
In this laboratory, most of the experiments are in current clamp mode. The experimenter applies current pulses
and observes the voltage response. This is closer to the physiological conditions of axon operation and experiments done
under these conditions will give a closer insight as how the normal axon works. This mode is harder to understand
because the voltage is controlling the conductances which in turn are allowing ionic currents to go through the
membrane which in turn modify the membrane voltage. In addition, as the voltage is changing, there is a capacitive
current that is contributing to the total membrane current. It is then suggested that you go through experiments 1 through
6, which are in current clamp mode and, optionally, go to experiment 7 to perform voltage clamp experiments to review
your knowledge of how voltage dependent channels operate.
Membrane vs. Propagated action potential.
As we are dealing with an axon, changes of V in one spot may be different in other regions of the axon. In the
Membrane Action Potential window
we eliminate this problem by inserting
an axial wire and making the
membrane isopotential ("space clamp
condition"). In the Propagated action
potential window, the axon does not
contain the axial wire. To simplify the
interpretation, all the initial
experiments are done with the axial
wire.
PROGRAM SETUP
Start the nerve program. If
the program was running, some of the
parameters may be different from the
default values. To correct this, press
F10 (function key 10 or click on
RESET parameters) which will revert most of the parameters to their default values. The access to the different
simulation modes is by way of the button on the left side of the main screen, as shown in Fig. 1.For example, to initiate
an action potential simulation with axial wire, just click on the Membrane AP button. This action will open a window
that has a plotting area and several buttons to perform different operations. Some of these operations can be done by
using shortcuts and a list of the short cut keys is at the end of this guide.
EXPERIMENTS
The initial experiments are designed to familiarize you with the different variables that are useful in understanding the
generation of the action potential.
Experiment
1:

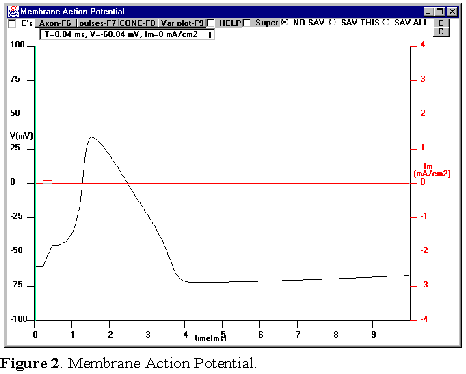

To start, click on the Membrane AP button. You should see a plot of the voltage as a function of time (black trace) along with the current pulse used to stimulate axon, also as a function of time (red trace, see Fig. 2). What you have done is to simulate with the equations the injection of a current pulse (of 10 mA and 0.25 ms duration) to the axon and record the membrane potential. These are the default values and you will be able to change them in the course of the following experiments.
So, you have generated an action potential! Now we will ask what is underlying this phenomenon. Let us explore what is the time course of some of the variables that may be changing during the generation of the action potential. The program allows you to plot in he same screen the time course of many of the important variables.
For example, let us look at the potassium current and potassium conductance during the action potential. Click on the Variables to Plot (or press F9), which will open the Variables to Plot window, and click on the potassium conductance (gK) and the Potassium current (IK). Then close the Variables to Plot window.
Now you should see plots of the membrane
voltage, gK, and iK. (Fig. 3).
In which direction is the potassium current
flowing, into or out of the cell?
By clicking several times on the right hand scale you can display the
legend for Im, gK and IK. You can
also vary the range for the gK and IK
plot by expanding or compressing the plotted scales using the E
and C buttons. For example, after you have clicked to display
gK, the default scale will be 20 mS/cm2 and if you press
E, the maximum scale will read 10 mS/cm2 and the
gK trace will be twice as big, allowing you to see more details.
Press C to go back to the original scale. To make comparisons
easier between different variables
you
can select a different plotting scale for iK. Also, as before, you
can display the legend and scale for each variable by repeatedly clicking on
the right hand scale. In addition, by clicking the mouse in the plotting area,
a vertical cursor appears and the values of time, voltage and the selected variable
of the right hand scale are printed at the time signaled by the cursor. Figure
3 shows an example of the screen that you should see. Notice the time courses
for iK and gK are different. The iK curve
reaches its peak before gK, why? [Hint: display the equilibrium
potentials (by clicking on E's check button) and consider the
relationship between EK and the membrane voltage.] Observe the falling
phase of the potassium current. How can the potassium current (IK)
have fallen to nearly its resting level while gK is still greater
than 0? Is IK equal to 0? You can check this more accurately
by using a higher gain (higher magnification using the E button)
for the IK plot. Once you understand the reasons for the different
time courses of IK and gK, add the n curve to
your plot. The screen should look like figure 4. The n curve is a measure of
the time course of the opening and closing of one of the subunits of the potassium
channel (often referred to as the opening and closing of the n gate). Click
on the right hand scale until you display the scale for the n curve. Remember
that the probability of opening Po=n4 and that gK=NPo.
What is the significance of the fact that the n curve does not start at
0? Why is IK nearly 0 at the end of the action potential trace even
though at this same time n is even greater than its resting value of approximately
0.4?
After
this you may consider how sodium ions are involved in the action potential.
Click on Var. To Plot and deselect the potassium variables
and check the sodium variables INa and gNa. You should
see plots of the membrane voltage, gNa, and INa. Remember,
as before, you can display the legend and the plotting scales that are best
for comparing gNa and INa by repeatedly clicking on the
right hand scale. Figure 5 shows the screen with gNa, INa,
and membrane voltage plotted. Notice that the time courses for INa
and gNa are different. In which direction is the sodium current
flowing during the action potential? There are several interesting and
important features shown in the sodium current trace. First, why is there
a notch in the INa trace? What can you learn from this about the
relation between INa and gNa? [Hint: display ENa
and consider the relationship of ENa to the membrane voltage V.]
Notice that the peak INa curve occurs later than the peak of
the gNa curve, why? Once you understand the reasons for the
different time courses of INa, and gNa, add the
m and h curves to your plot. Note: these variables can best be understood if
you simplify your screen by removing the sodium current (deselect INa
in Var. To Plot). Now you can compare the time course of the membrane voltage
and the m and h curves during an action potential along with gNa
(which is proportional to m3h). The screen should look like figure
6. Click on the right hand scale to display the legend for the m or h curves.
What is the significance of the fact that the m curve does not start at
0 and that the h curve does not start at 1?. Remember that m represents
the probability that one of the subunits is in the active position and in the
classical formulation three are required to open the channel (m3)
but at the same time, the inactivation particle has to be out of position for
the channel to conduct. The
probability
that the inactivating ball is in position is given by 1-h. Therefore the probability
that the Na channel is conducting will be: P=m3h and the conductance
will be gNa= NNaP = NNam3h.
Thus, from these two curves you can get an appreciation of how the two gates
of the sodium channel can act to regulate the sodium channel's permeability.
To see how these interact, plot gNa, m, and h together. Why does
the sodium conductance begin to fall even though the sodium channel's m gate
is still open? What would occur if you tried to stimulate the nerve with a second
pulse timed to coincide with the peak of the sodium conductance? Don't
do this experiment now, just think about it; you have enough information to
make a definitive statement. In fact, now you should be able to explain the
ionic mechanism responsible for the absolute and refractory periods (more on
this later).
Lastly, examine
the total ionic current that flows during an action potential.

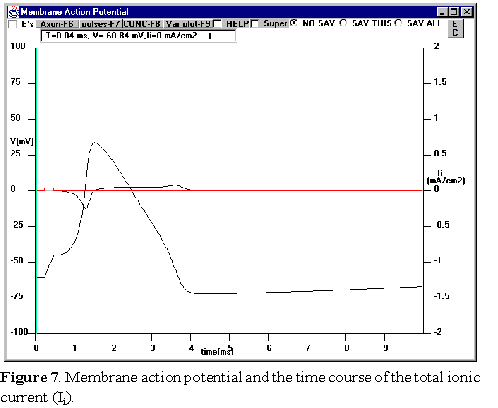

Deselect the sodium variables and check the total ionic current (Ii)
in the Variables to Plot window. This is shown in Figure 7.
Note that there are 4 points in time during the trace at which the net ionic
current is zero. To really see the four points you must increase the vertical
gain of the total ionic current. Click on the right hand side vertical scale
until you see Ii and then click on the E button several times
until you see full detail of the ionic current.
Identify these points and consider their significance.
Remember that this is a membrane action potential, therefore the total membrane current is equal to the sum of the capacitive current plus the total ionic current: Im=C(dV/dt) +Ii However, after the current pulse is finished, Im=0 and we have
Ii=-C(dV/dt)
Use this equation to relate the total ionic current to the slope of the membrane potential at different points during the action potential.
Can you explain why the peak inward
current occurs before the peak of the
membrane voltage? Think back to your
study of the sodium conductance. Look at
the total ionic current during the falling
phase of the action potential waveform and
compare to the rate of decay of the action
potential.
NOTE: At this point, you may like to
review your understanding of the voltage dependent conductances to be able to interpret the previous results and the
next experiments. If you feel this is the case, then this is a good time to proceed to experiment 7, before continuing with
experiment 2.
Experiment 2:
This following
set of experiments is designed to analyze the properties of membrane action
potentials under a variety of different conditions. Start from the membrane
action potential window with a simple action potential simulation as in experiment
1. Set up the stimulus parameters (Pulses, F7) for a single
0.25 millisecond duration pulse with a 10 microamp amplitude. However, set the
total duration of the trace displayed to 6 milliseconds. Run this action potential
simulation. This should produce a fairly broad time course for the action potential.
Notice that the action potential actually begins after the stimulus pulse is
turned off. How is this possible? It will help to plot the total membrane
current and the Na and K currents in a magnified vertical scale. After
you have understood why the action potential starts after the pulse, remove
the extra variables (if you added them) by deselecting them in the
Var to Plot window.
Before increasing the temperature, save the AP simulation by clicking on SAV THIS, then click on super. These two operations will allow you to superimpose the traces at two different temperatures. So far you have been working at the default temperature of 6.3o C, now, increase the temperature to give a faster action potential waveform. To do this, click on Axon (or F6) and the Axon Parameters window will appear. The temperature can be changed by typing a value in the window followed by the ENTER key or by moving the slider. You will notice that as the temperature is varied, the action potential generated has different shape and it will show superimposed on the 6.3 C action potential and an example is shown in Figure 8. Try several different temperatures. What happens to the action potential as the temperature is increased? Since the reduction in action potential amplitude cannot be accounted for by changes in ENa or EK, what then accounts for these changes? [Hint: consider the effect of temperature on channel kinetics] Why does the action potential start sooner as the temperature is increased?
.
Experiment 3:
Based upon Hodgkin and Huxley's formulation, the action potential
should be made up of an inward sodium current and outward potassium current.
If this is so, then when the external ion concentrations are changed the action
potential waveform should change in predictable ways. We can test this directly
by first changing the external sodium concentration. Since we will be examining
the effects of decreasing the external sodium concentration we need to increase
the stimulus to insure that an action potential will occur each time. Click
on Pulses (or F7) and set the stimulus
strength
to 20 microamps and increase the total time to 12 ms. Click on Axon
(or F6) and reset the temperature to its default value (click
on default in the temperature field).
To simplify interpretation we will first run this simulation using ideal
Na and K channel properties where only sodium or potassium ions go
through their respective channels (ie in an ideal Na channel only Na can permeate).
Then we will return to more realistic channel properties (Hodgkin and Huxley
type Na and K Channel properties) where both ions can pass through each channel
with preferential permeability ratios (for example a real, or HH, Na channel
conducts Na 15 times better than K). To do this, in the Axon
Parameters window click on the ideal Channel Properties.
Click on SAV THIS to save the present simulation. Now click
on CONC or F8) and modify the external sodium
concentration from its default value which is 440 mM. Check Super
and you will see the new action potential superimposed in the reference Action
potential recorded in the default external Na concentration. Progressively reduce
the external sodium concentration and observe the action potential. Before you
run these simulations with reduced sodium concentrations try to predict what
changes you will see. When you have reduced the external sodium concentration
to about 200 mM, the superposition should look like the action potentials shown
in Figure 9. Notice that there is a small change in the resting potential. Why
does this occur if the resting potential is mainly determined by the potassium
concentration? Also note that many aspects of the action potential waveform
have changed (e.g., rate of rise, peak amplitude, and the overshoot) but the
undershoot did not. Be sure you can explain each of these changes in terms of
the changes of the external Na concentration and ENa (Click on E's
to display the equilibrium potentials). In this experiment the effects and interpretation
of the sodium concentration changes were simplified by using idealized channel
properties.
Optional: For a more realistic view of the effect of sodium, repeat this experiment using normal non-ideal channel properties (In the Axon Parameters window, check the non-ideal Channel). Again, try to predict the effect of the sodium concentration changes. Figure 10 shows two superimposed action potentials recorded in 100% and 40% of normal sodium concentration outside. Examine the effects of the 40% sodium concentration on the action potential waveform. Explain why the changes in the action potential waveform are different when normal rather than ideal channel properties are in use. What happened to the resting potential and the action potential undershoot, why? How do these changes compare to those seen using ideal sodium channels? Be sure that you understand and can explain these differences.
Experiment 4:
In experiment 3 we saw that changes in external sodium affected many of the action potential properties. Let us now examine the threshold, which is a property that defines whether the action potential will or will not be generated. Restore the action potential parameters by clicking on RESET parameters or pressing F10. In the Pulses window change the amplitude to 10 uA and the total duration to 10 ms. Now, experimentally determine the amplitude of the current pulse that is required to just exceed threshold (that is, that generates an action potential). To see the relationship between different stimulus intensities you can save each screen by clicking in SAV ALL and checking super to superimpose the traces as you change the stimulus strength. . Figure 11 shows one example of a series of superimposed traces, the suprathreshold stimulus was 5 uA and initiated an action potential but a 4.8 uA did not. Experiment with the amplitude and observe how sharp is the threshold. Why does the progressive reduction of the stimulus intensity cause the onset of the action potential to occur at progressively longer times after the cessation of the stimulus? [Hint: One suggestion as to how to approach answering this question is to try examining the total ionic current at high magnification, together with the Na and K currents. Observe the direction of the currents just when the action potential is taking off]. Also, why when the stimulus is just at threshold, does the membrane potential remain depolarized past the turn off of the current pulse? Try now to correlate the threshold events with the conductances (and also plot the h variable). Once you see how the membrane voltage is related to the membrane conductances you should be able to explain why the stimulus that is just suprathreshold generates a smaller than normal action potential (i.e., compared with the action potential resulting from a stimulus of 10 microamps).
Note the value of EK and membrane potential V. Now increase the extracellular potassium progressively and
examine its effect on the action potential and threshold. Be sure to examine gK, gNa, m, n, and h. Try 20 mM extracellular
K. Why do comparatively small changes in potassium have such a profound effect compared to the effect of sodium
concentration changes that you tried in experiment 3? Furthermore, why do large changes in potassium actually stop
all activity? Examine the changes in membrane potential, the m,n and h variables and the equilibrium potentials.
Experiment 5:
So far we have been examining the properties of a single action potential,
but now we will study how one action potential can affect the generation of
a second action potential. First restore default parameters (RESET parameters)
and then in the pulses window increase the total time to 20
ms and add a second pulse (increase pulse 3 to 10 microamps Amplitude,
and 0.25 msec Duration. Then modify the duration of the second
pulse (which is an interval with no pulse) to 12 msec. Make sure that the first

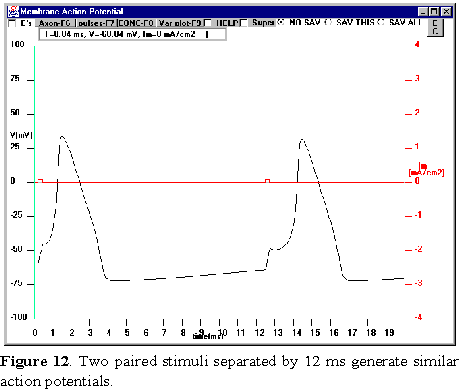

and the third pulses are the same. You should see two action potentials as shown
in figure 12. Save
this screen (click on SAV THIS). Now we will change the first
stimulus, PULSE 1, and see how this affects the second action potential. First,
progressively decrease the amplitude of PULSE 1 and observe the second action

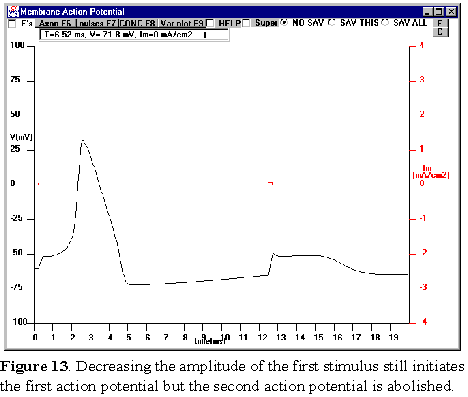

potential waveform. When you decrease PULSE 1 to an amplitude that is very near
to threshold (i.e., S1 set between 6-7 microamp), the second action
potential is abolished (Figure 13;here PULSE 1=6 microamp). Try different amplitudes
for PULSE 1. Why does PULSE 3, which was previously suprathreshold, now
become so much less effective in eliciting an action potential and even become
subthreshold if PULSE 1 is made small enough? How can you change PULSE 3 to
elicit the second action potential?
Now let us explore the generation of a second action potential as a function of the separation of the two stimulii. In the Stimulus window (press F7) reset the first stimulus to 10 microamp and 0.25 ms and change the Interval to 6 ms. Keep changing the stimulus amplitude of the second pulse until you have a nice action potential. Then repeat this process by making the interval even shorter and modifying the amplitude of the second pulse to recover the second action potential. Why you cannot obtain a second action potential regardless of the amplitude of the second pulse when you decrease the interval below a critical level?. What do these results tell you about refractory periods and threshold? Be sure that you understand the mechanisms underlying these processes. Try to explain these results remembering what you know about Na inactivation and potassium activation. A simultaneous plot of h and gK are very useful.
There are many physiological factors
that can affect the excitability of a cell.
Dramatic changes in excitability can occur, for example, in response to small changes ionic concentrations or when cells
are exposed to very small concentrations of drugs and toxins. You may want to study some of these effects on your own
using this program.
Experiment 6:
Close the Membrane Action Potential window and click on the Stimulus
button to set up the standard 0.25 millisecond duration pulse with a 10 microamp
pulse amplitude stimulus and a total duration of 10 milliseconds. Press
the
RESET poarameters button (or presss F10 to reset) . Then click
on the V vs T Propagated AP and observe the normally propagated
action potential at three points along the axon.
Compute the conduction velocity. This can be easily accomplished using the cursor feature. Click with the mouse at the peak of the blue action potential and you get the time and the value of the voltage at the three recording electrodes: take note of the time (see Figure 14). Next, click on the the peak of the red action potential and take note of the time. Knowing the time difference and the distance between the lectrodes you can compute the conduction velocity. Next, test whether the conduction velocity is temperature sensitive by rerunning the simulation at different temperatures. Examine the kinetics of m, n and h.
.NOTE: In the propagated action potential window, to see the effect of any change in parameters, you must rerun the simulation by clicking on the START button (or press F3).
How do you account for the changes in the action potential's shape (waveform) and size at higher temperatures? Now set the temperature to 18o C and change the diameter of the axon to 400 microns. Run the simulation again. What happened and why? You should know a variety of different ways to alter this experimental situation to cause an action potential in this new cell. First try to increase the stimulus intensity. Calculate the new conduction velocity for this larger diameter cell. Run the simulation using a 100 micron diameter axon. Before you run this simulation consider the magnitude of the stimulus pulse. What type of a voltage response do you expect in the nerve if you use the same stimulus parameters as you used with the 400 micron fiber? After you adjust the stimulus intensity to fire an action potential in the 100 micron fiber calculate the conduction velocity. What is the effect of fiber diameter on conduction velocity? Be sure that you can give an explanation of the mechanisms responsible for these changes in conduction velocity.
Cable
properties of the axon. Now that you have seen the propagation due
to the presence of the voltage dependent conductances it is a good moment to
see what happens without them. Prepare the program as follows. First, click
on the Axon button (or press F6) and reduce the maximum sodium
and potassium conductances to zero. Increase the maximum leak conductance to
0.5. Then click on the Pulses button and adjust the total time
to 20 ms and the amplitude of PULSE 1 to 5 microamps and the duration to 12
ms. Now run the simulation by clicking START (or press F3)..

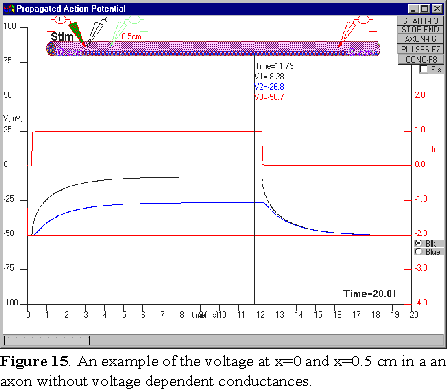

You see now the passive response of the axon to the stimulus at the stimulating
site but there is almost nothing that you can detect with the other electrodes
(Figure 15). With the mouse, drag the center electrode closer to the stimulus,
say to to 0.5 cm and run the simulation again. Now you see the response, slowed
down and attenuated at the blue electrode position. Keep changing the electrode
position and run the simulation so you can have an idea of how fast the passive
response is attenuated along the axon. Use the cursor and then try to estimate
from these measurements the value of the space constant.
Finally, close the window, RESET the
parameters, and change the stimulus to PULSE 1 of
10 microamps and 0.25 ms duration. Then run the
Voltage versus distance by clicking on the VvsX
propagated AP (from the main window) and
verify the extent of axon that is depolarized during
an action potential. Notice that the depolarized
region is a relatively long stretch of axon.
Experiment 7 (optional):
This experiment will be done under voltage clamp. From the main window Press F10 to reset and click the Voltage clamp button. This will present a simulation of a voltage pulse from -70 to 0 mV for 10 ms (black trace) showing the ionic current (red trace) with its inward Na component and outward K component.. To see the Na and K components, click on Var Plot and add INa and IK Click on the right hand scale until INa is displayed and then click on the C button to compress the current so it will have the same scale as Im. Repeat the same operation with IK
Deselect INa

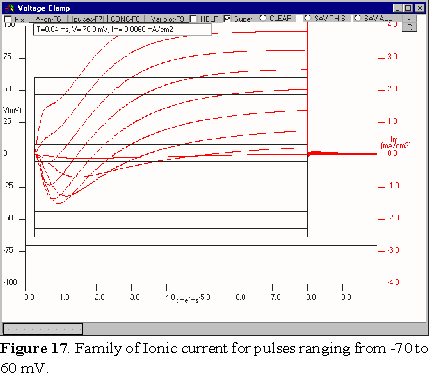

and IK and proceed now to give a family of voltage clamp pulses.
In the Pulses window change the amplitude to -70 mV, then check
Family and modify the End of pulse to 60 mV.
(Figure 16). Identify the Na and K current components and notice when the Na
current turns outward. Click on CONC and add Tetrodotoxin (TTX). The simulation
will run on top of the previous family. To clear the old family, click on CLEAR.
Now you can see the K currents in almost isolation. Identify the turn on time,
lag and maximum current for each potential.
Study the gating
of the sodium current. Decrease TTX to zero. Uncheck family and change the pulse
amplitude to -10 mV. In Var To Plot select INa, m and h. Go to the
Physiological parameters menu and increase TTX to the maximum.
Further experiments suggested are: 1. settling of inactivation using
a double pulse protocol where the amplitude of the pulse 2 is varied and pulse
3 is fixed; 2. recovery from inactivation, where pulse 1 is fixed at
0 mV for a duration of 10 ms, pulse 2 at -70 (or other potential) with a variable
duration and pulse 3 is fixed at 0 mV with 2 ms duration.
PROGRAM COMMANDS
F3 run Propagated AP simulation (from the Propagated AP window)
F6 Axon parameters
F7 Stimulus
F8 Concentrations
F9 Variables to Plot Menu
F10 reset parameters to default values (from main window)
ESC Close window in use.
